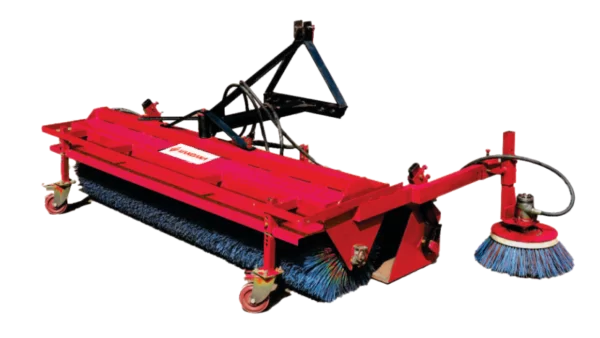

TRACTOR MOUNTED ROAD SWEEPER MACHINE

₹250,000.00

Advance Payment : ₹62,500.00 Per item

Product Description

  • Model Name
  • VANDANA RS-1
  • Weight
  • 270kg(Approx)
  • Size
  • 2390 x 1100 x 1050 mm
  • Cleaning Area Covered
  • 2300 mm
  • Surrounding Area Covered Volume
  • 240 ltr.
  • Material Used
  • BSK-46 (Heigh Strenght Material )
  • Hydraulic Drive
  • Gearmotor
  • Max Operating Pressure
  • 180 bar
  • Min Hydraulic Oil Flow Rate
  • 20 lpm
  • Main Brush Dia.
  • 520 mm. (3 Piece) PPN Brush (Polypropylene - Natural)
  • Material Of Brush
  • Garware Nylon Bristles
  • Brush Revolution
  • 100 - 150 rpm
  • Supporting Wheels
  • Dia. 200 X 50 m.m. adjustable height with dust caps (Rubber Moulded) Two Heavy Duty Wheel
  • Mode Of Operation
  • Can Be operated conveniently by towing with a Tractor.
  • Swaping Width
  • 2 Meter Clear Sweeping
  • Dust Collection
  • Left Hand Side
  • Sweeping Adjustment
  • Adjustable Both Side As Per Slope Of Road
  • Suitability of Utilization
  • Suitable to Use for: (1) Metaling. (2) Wet Mixed Macadam Surface. (3) Asphalted Road Surface etc.
  • Surface preparation & Painting
  • Short Blasting & Two coat of Rustsolve Primer & 2k Paint with thickness of 80-90 micron
