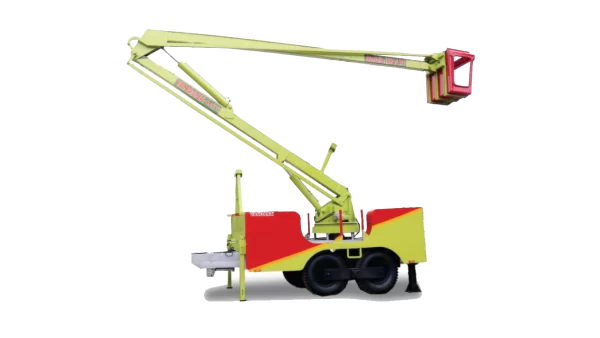

TRACTOR MOUNTED MOBILE SKY LIFT

₹1,170,000.00

Advance Payment : ₹292,500.00 Per item

Product Description

  • Model Name
  • Mobile Sky Lift
  • AXLE
  • TATA made axle
  • Tyre
  • Apollo, 1000X20 four Heavy Duty Wheel
  • Weight
  • 6710 kg (Approx.)
  • Size
  • 8294 x 1830 x 4624mm
  • Material Used
  • BSK-46 (Heigh Strenght Material )
  • Model
  • VANDANA SL-1
  • Hydraulic Drive
  • Hydraulics
  • Max Operating Pressure
  • 180 bar
  • Min Hydraulic Oil Flow Rate
  • 60-70 LPM
  • Suitability of Utilization
  • Gov. & Pvt. Sectors like muncipal corp. & factories
  • Surface preparation & Painting
  • Short Blasting & Two coat of Rustsolve Primer & 2k Paint with thickness of 80-90 micron
  • No. Of Cylinder Used
  • 02 nos
  • Chassis
  • Made with 8 inch channel, Jindal made
  • Horizontal Outreach
  • 3.5 meter
  • Boom Type
  • Z-Boom
  • Operating Height
  • min 3 meter - max 13 meter
  • Working Height
  • 3 meter - 13 meter
  • Type Of Boom
  • Articulated boom, Aerial access platform
  • Leaf Spring
  • 90x16 leaf spring with 20mm U Bolt , B.J. Company made
  • Breaking System
  • Air Break System
