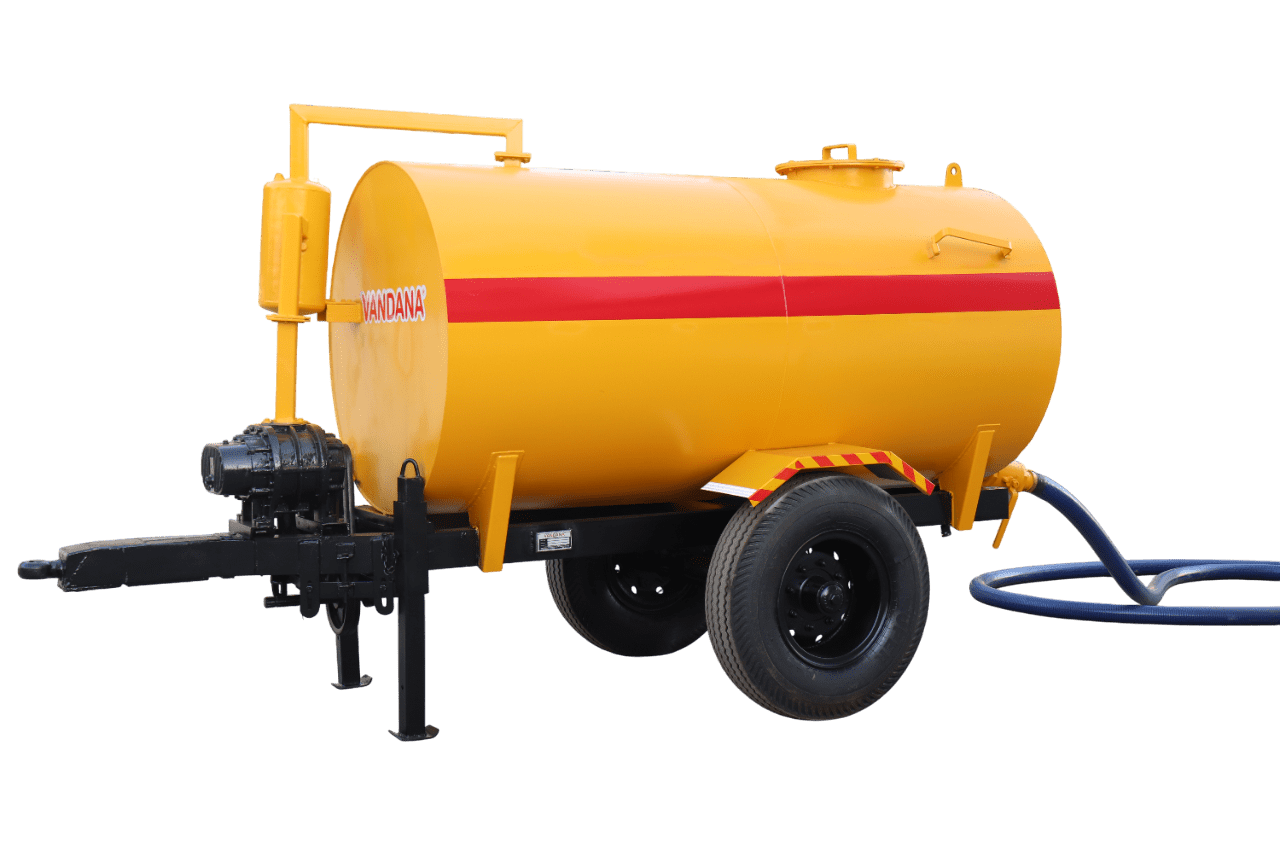

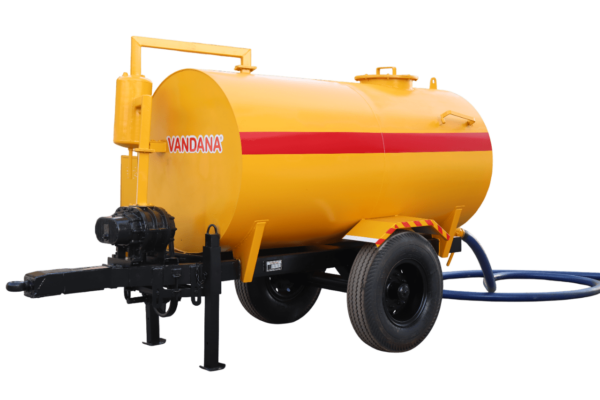

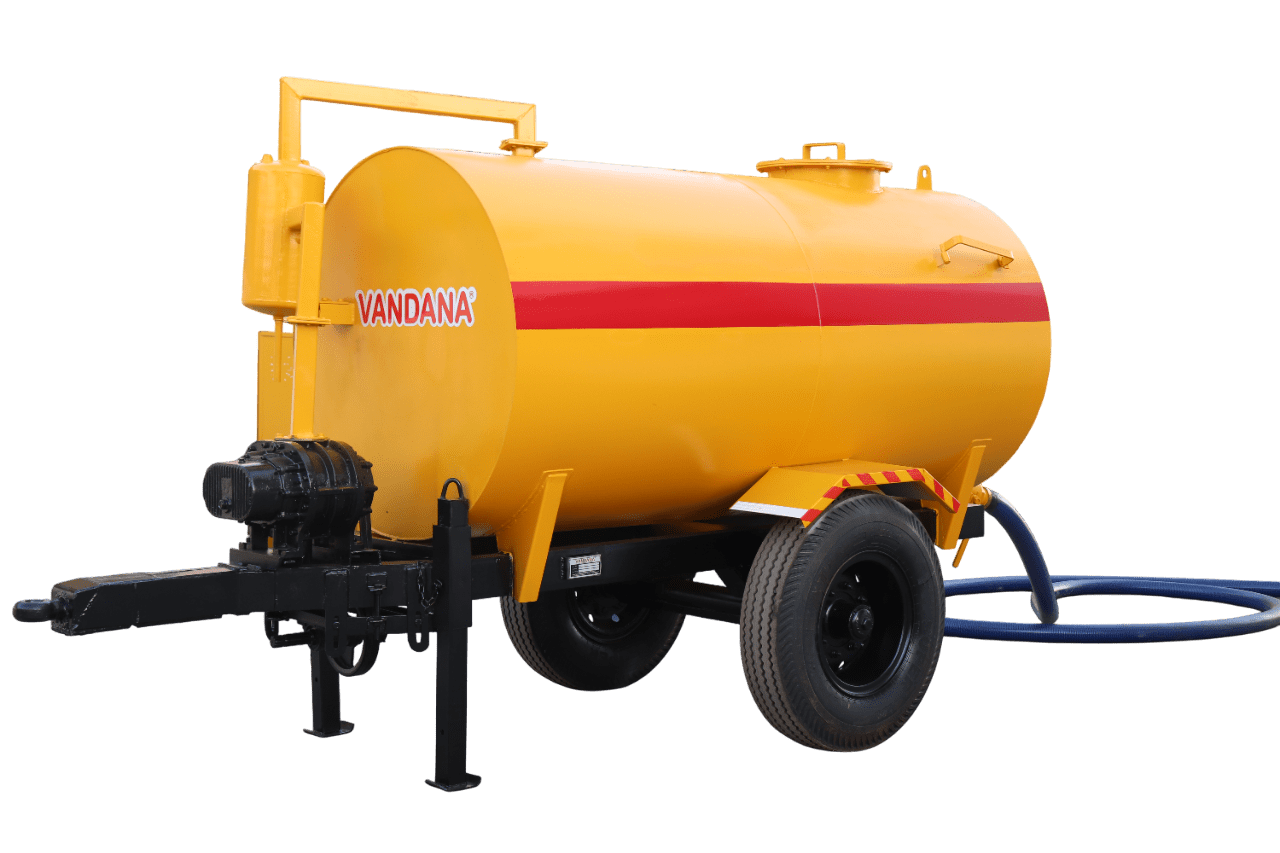

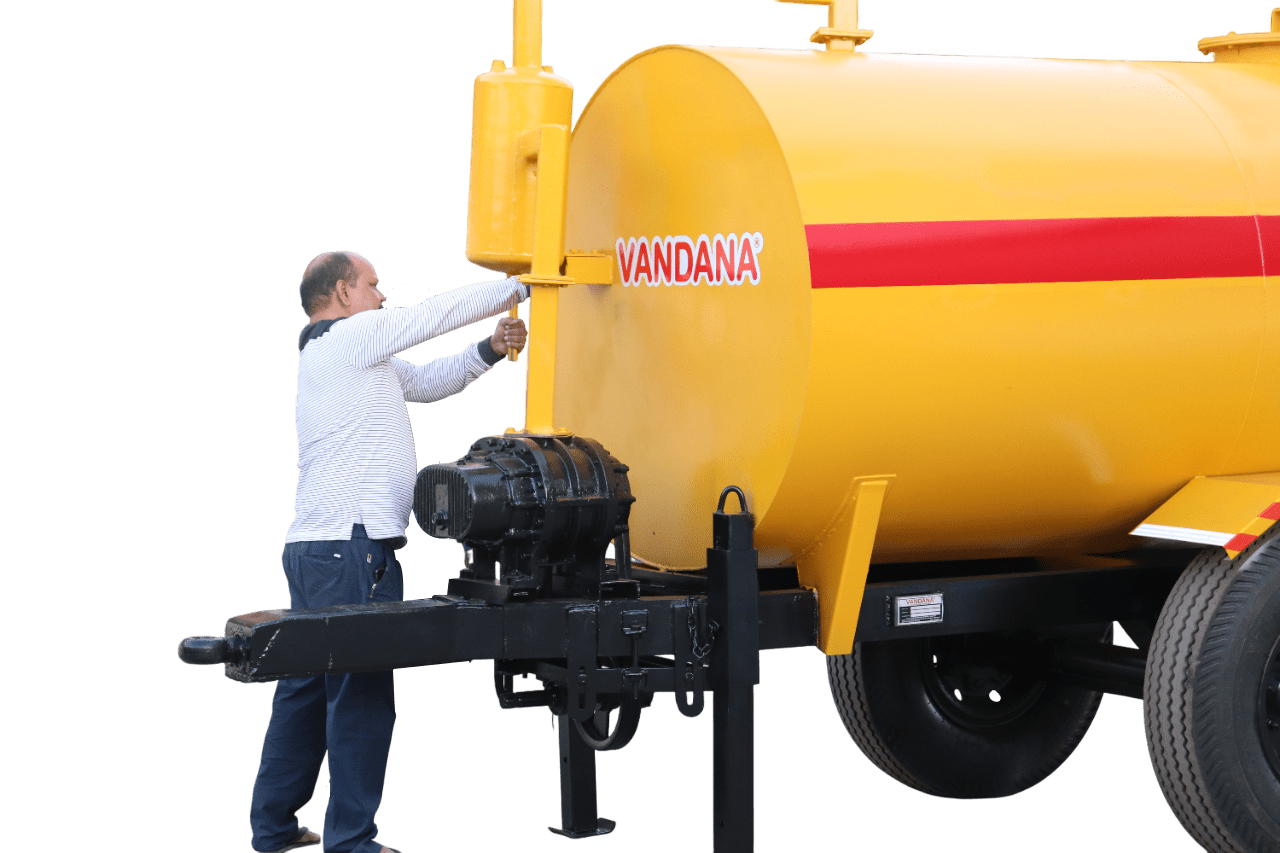

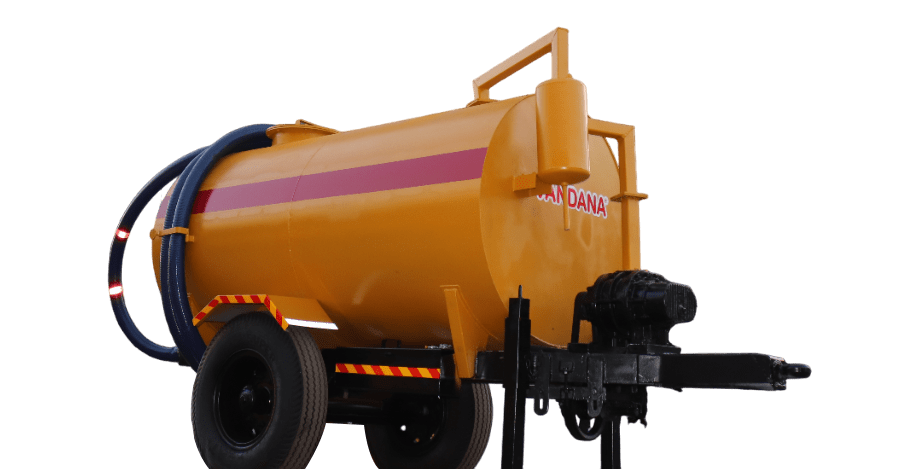

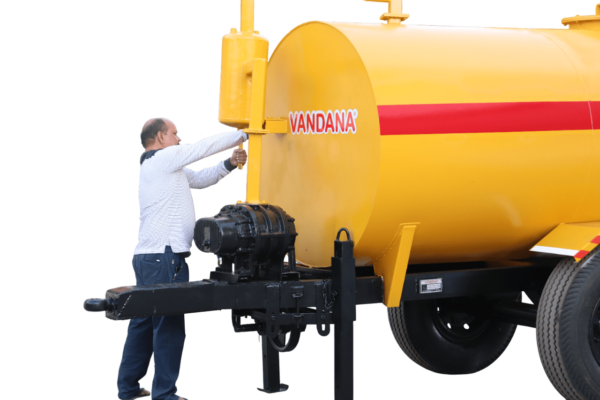

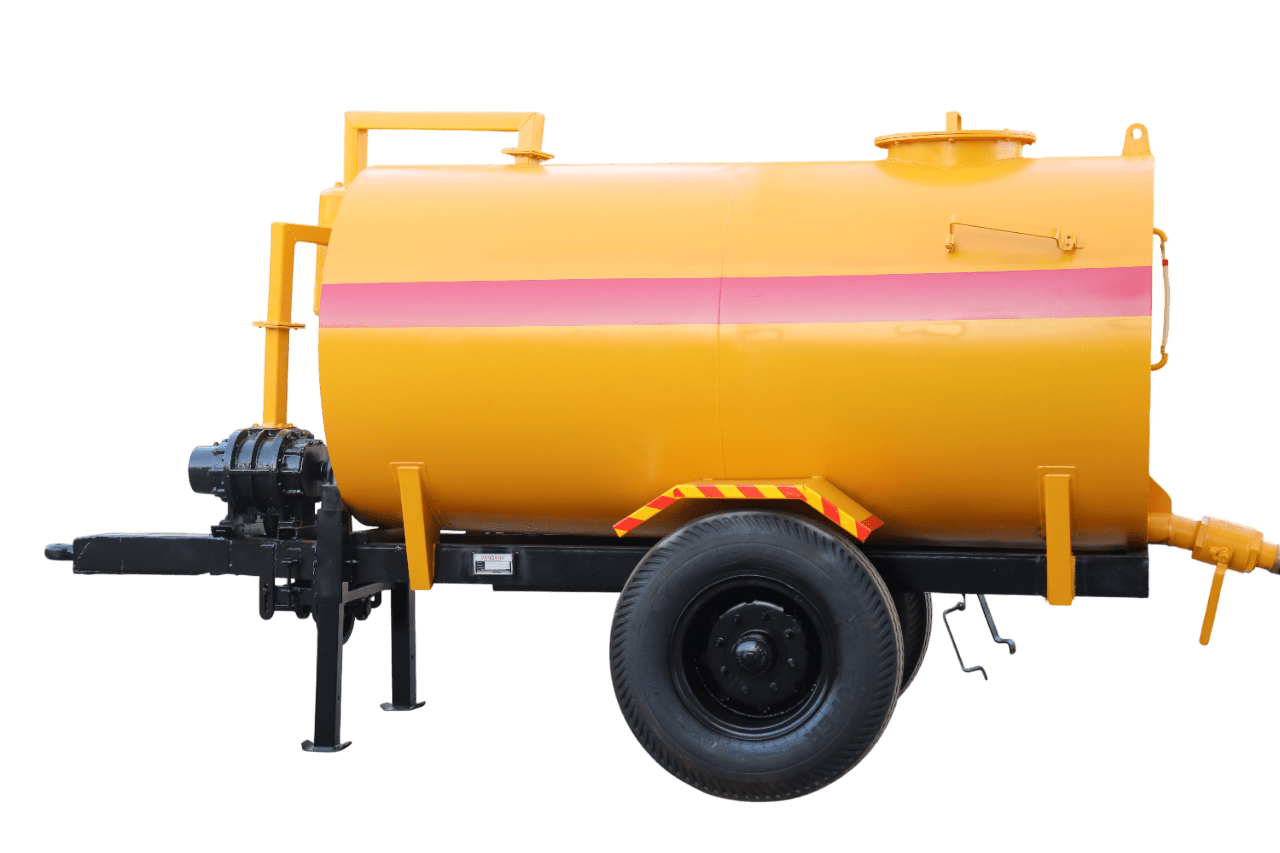

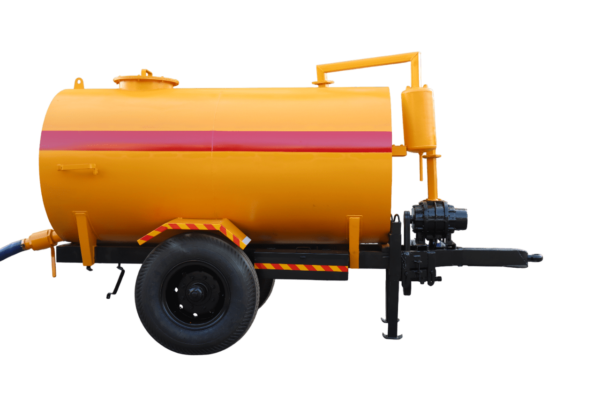

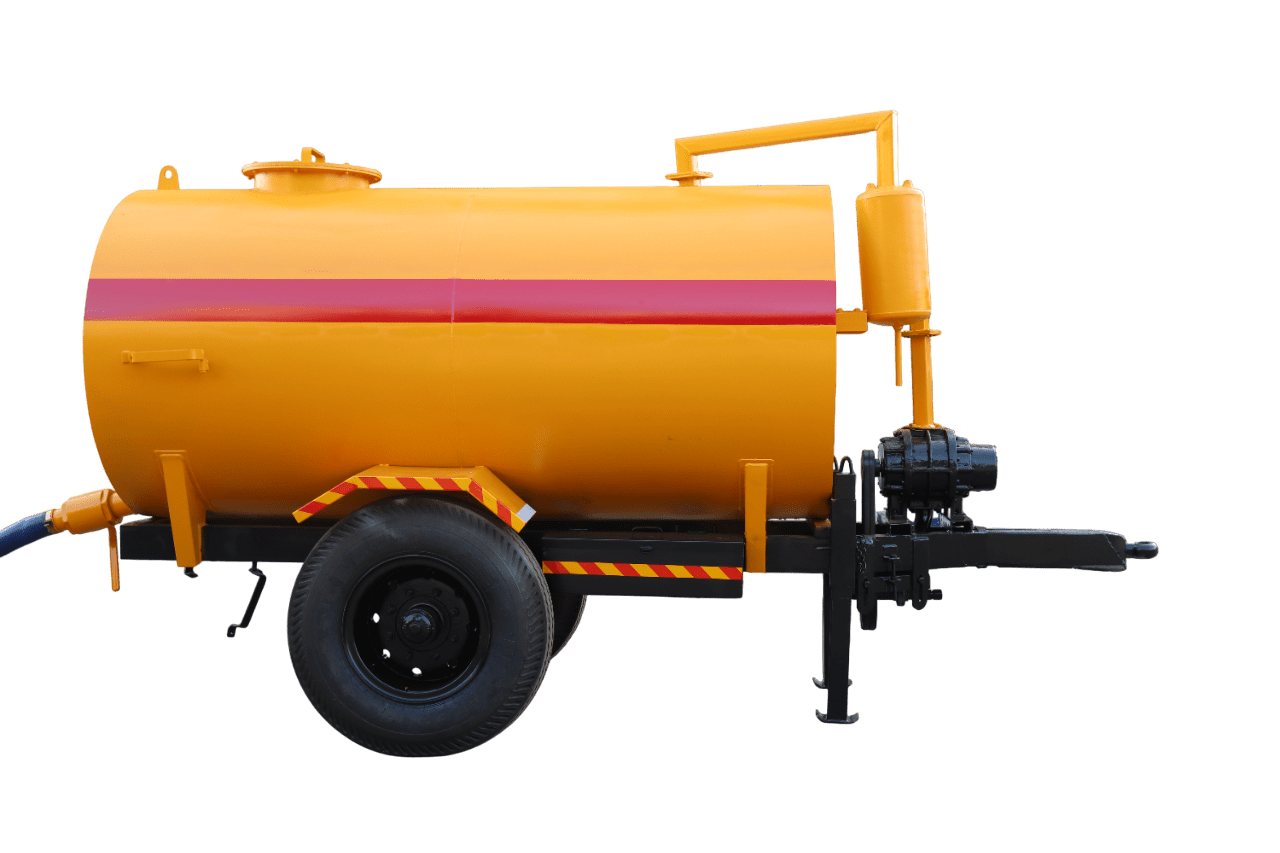

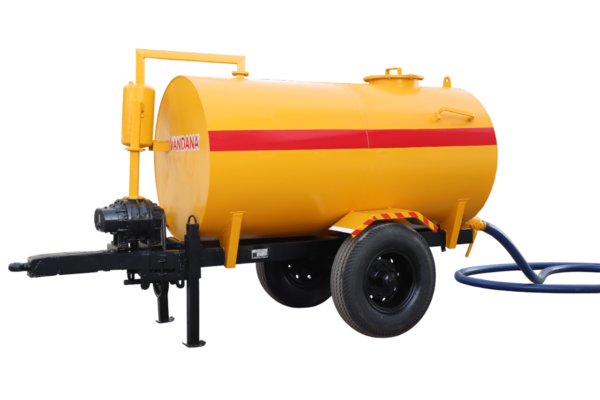

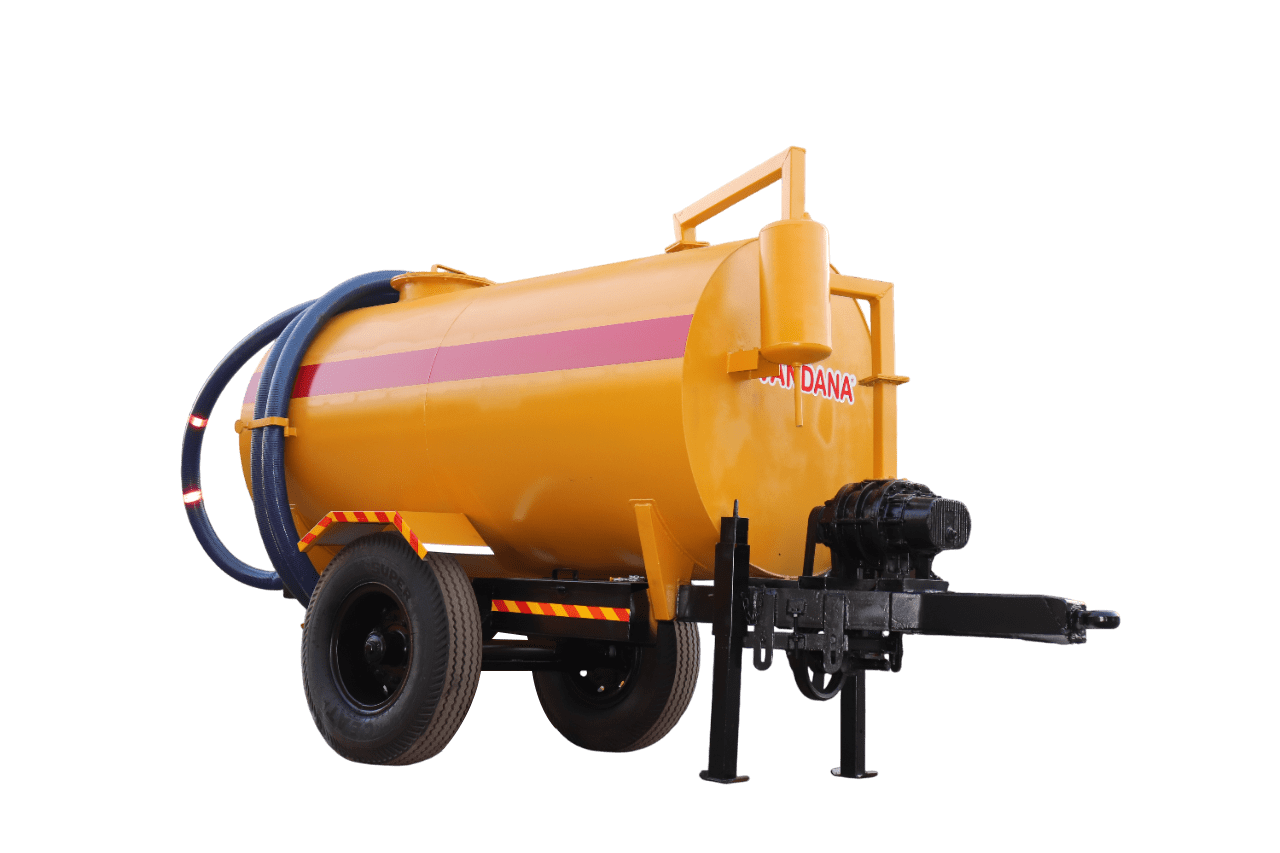

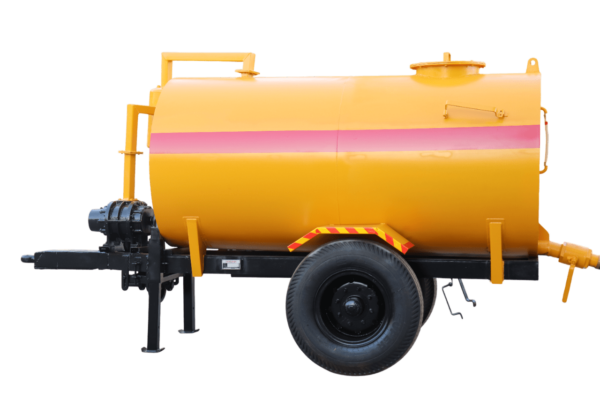

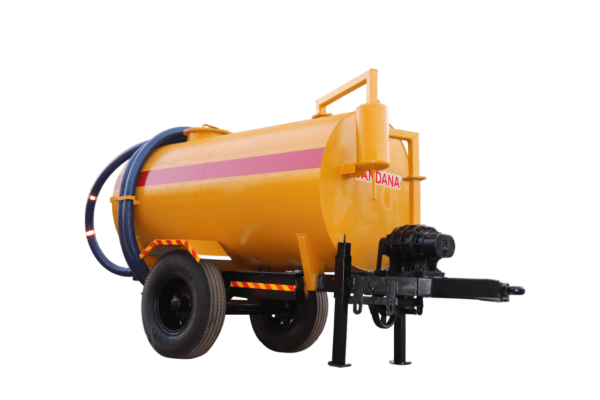

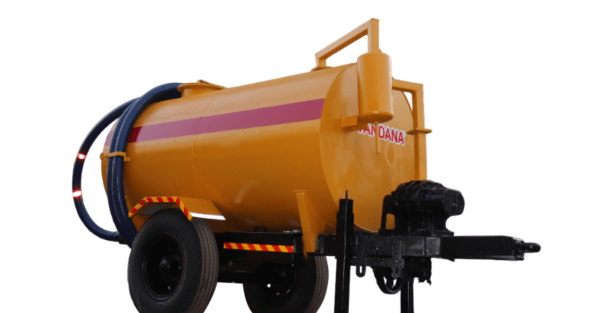

2 WHEEL VACUUM SUCTION MACHINE

₹350,000.00

Advance Payment : ₹87,500.00 Per item

Product Description

  • Model Name
  • 2 Wheel Vacuume Suction Machine
  • Painting
  • Zinc Chromate Primer, I Coats Synthetic Enamel,2 Coats Yel- low or as per customer’s choice.
  • Application
  • To suck the excreta from Cess Pool (Septic Tank) or sludge from sewer and store in the tank.
  • Carrying Vehicle
  • Shall be mounted on tractor.
  • Carrying Capacity By
  • 3000 L of cess pool sludge
  • Road Speed
  • 40 km/hr.
  • Tank Shape
  • Round with dished end
  • Sheet Thickness(mm.)
  • 5 , M.S.
  • Level Control
  • 2 nos Glass indicator to see level of filling shall be provided I no.Float Valve to stop suction shall be provided.
  • PTO
  • PTO on the Tractor gear box shall be installed by us.
  • Pump Drive
  • Power for driving pump shall be taken from PTO of the Tractor through universal shaft.
  • Delivery Suction value
  • 2 1/2 “ for suction and 4” for delivery.
  • Vacuum Pump
  • Long Life, Oil sealed Vane type pump with blow back facility suction Head 650 mm. Hg.(max.) complete with Primary & Secondary shutoff valve Pressure & Vacuum relief valve. S.S. Filter, off muffler cum silencer and Waste oil collection drum.
  • 4 Way Value
  • A 4-way valve shall be mounted over the pump with a lever on the too for selection of suction (Vacuum ) Mode or Blow Back (Pressure) Mode.
  • Sludge displacement / Capacity
  • 140 to 150 Litre per minute of sludge
